The first and only device of its kind to bring together three powerful energies, in a unique combination that delivers unparalleled results, with significantly reduced downtime.  Offering limitless options and ultimate control going far beyond standard fractional laser, Alma HybridTM enables you to determine every aspect of the treatment – for a completely new, never-before-seen concept in skin rejuvenation and scar treatment.

Designed for a wide range of ablative and non ablative treatments, Alma HybridTM combines the power of 3 core energies, creating a uniquely synergistic effect.

CO2 laser – the optimal blend of ablative, coagulative and thermal effect for efficient, highly-precise focus or fractional laser treatments.
1570nm laser – a powerful non-ablative laser which creates a thermal effect that promotes new dermis synthesis, while leaving the epidermis intact.
IMPACTTM for Trans Epidermal Delivery (TED) – our patented Ultrasound technology creates an acoustic pressure which enables delivery of cosmeceutical products into the skin through the micro-channels created by the CO2 laser.

In addition to this powerful combination, smart software serves as a tool that benefits both the doctor and the patient by enabling a matrix of options, including: skin type, the area being treated and other parameters, to ensure that each treatment is totally customized for each patient.

HyGridTM Customized to perfection

Safe, precise and versatile, HyGridTM gives you the benefit of both the CO2 and 1570nm lasers in one applicator, enabling you to custom-program the skin ablation-non ablation ratio in a matrix of the precise proportions required to meet the unique treatment needs of each and every patient.

With both laser wavelengths having their own optimal effect on the skin, side by side, treatments are highly effective, suitable for darker skin types and with a low ablation density that minimizes downtime.

Treatments

A single platform that enables you to offer your patients the personalized skin rejuvenation treatments they desire.
The innovative skin treatment methodology employed by Alma HybridTM encompasses three essential elements: optimal ablation for perfect resurfacing; ultimate deep thermal effect for new collagen synthesis and regeneration of the dermis; and unprecedentedly effective trans epidermal delivery of skin essentials.

Offering complete control of recovery time according to patient needs, the three treatments unique to the Alma HybridTM include:

Hybrid Lift Super renewal

Blending the very best of ablative and thermal technology with enhanced delivery of cosmeceuticals, this treatment produces unparalleled results, while necessitating a relatively short downtime. The unique scanning pattern of the CO2 and 1570nm lasers recontracts the skin to remove fine lines and deep wrinkles, and peels off solar pigmentation, while the Impact ultrasound ensures deeper penetration of products deep within the skin.

The result? An over-the-weekend treatment with dramatic results that leave your skin looking and feeling, smoother and more youthful.

Hybrid OScar – Scar treatment

OScar is the ultimate treatment for the remediation of all types of scar, from acne to trauma to surgical scarring. The success of scar treatment depends on the effective penetration into the dermis layer of the lasers. Thanks to the combination of the CO2 and 1570nm laser wavelengths, you can customize different parameters – including penetration depth, width of the coagulation and density – to customize the optimal protocol for each client and the type of scar being treated. Finishing the treatment with Impact, you achieve the optimal penetration of pharmaceuticals and essential products to improve the overall result.

SoftLift – “Lunch time” rejuvenation treatment

SoftLift provides refinement of skin tone, contraction of fine lines and wrinkles and repair of different skin lesions, including acne scars, with virtually no downtime. Creating a significant thermal effect, the powerful, non-ablative modulated fiber 1570nm laser promotes neocollagenesis and regenerates the extracellular matrix that supports the skin cells, while leaving the epidermis itself intact. Safe even for dark skin types (VI), it takes just three or four sessions to improve skin texture, achieve youthful skin tone and reduce the appearance of fine lines and mild wrinkles. The result? A treatment that leaves your skin feeling smooth, with a youthful tone and glow. Safe and comfortable, the treatments are minimally invasive, take only up to 45 minutes and need to be performed only 1-2 times to achieve the desired results.



Applicators

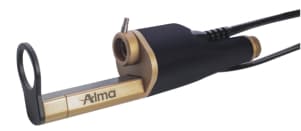

ProScan
Our flagship applicator

With the aim of fully realizing the capabilities of the HyGridTM, Alma has created the highly advanced, automated ProScan scanner. Creating aligned, focused lasing beams in high sequence, the light, ergonomically-designed ProScan has an effect that is at once ablative, coagulative and thermal.

As well as a galvanometric scanning motor and mirrors, ProScan has a cooled tip to enhance treatment safety and patient comfort. Enabling rapid coverage of large surface areas, the applicator offers a range of different scanning shapes and modes for complete customization.



IMPACT
for Trans Epidermal Delivery (TED)

While fractional laser and RF treatments can be highly effective for a variety of indications, combining these with the application of active topical ingredients serves to maintain and significantly augment results.
IMPACT, our patented ultrasound technology, which overcomes the forces of intracellular fluid produced by the skin to deliver pharmaceuticals and cosmeceuticals trans-epidermally, through the micro-channels created by the CO2 laser, penetrating deep into the skin layers to achieve enhanced results.

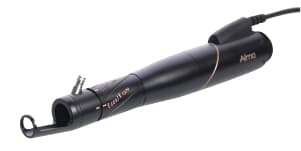

HyLight
Flexible spot size adjustment, ideal for individual skin tags and lesions

HyLight applicator can change the size of the laser spot up to 4mm using a single applicator. This allows physicians to work with larger spot sizes while maintaining work stability during treatment. It is ideal for removing skin tags and other benign skin growths as well as individual pigmented lesions.

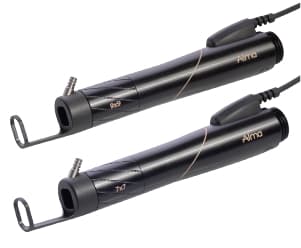

Pixel
High thermal effect, short downtime, ideal for wrinkles and skin tightening

The Pixel CO2 laser energy to the skin through a DOE (Diffractive Optical Element) which pixelates the beam to either 49 or 81 pixels, creating simultaneous microscopic columns of micro-ablative damage. The energy is delivered in a square pattern with an 11x11mm spot size.
This unique technology approach enables the use of much higher energy levels via longer pulse durations, creating a greater coagulation and thermal effect with minimal ablation and significantly less patient downtime.
The deep thermal effect of the Pixel applicator makes it ideal for skin rejuvenation, treating fin lines and wrinkles.

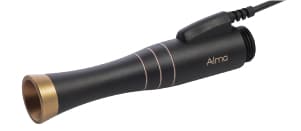

ThermoTight
Non-ablative laser with zero downtime, for skin tightening

ThermoTight is a handheld microprocessor-controlled laser scanner for char-free ablative procedures that allows for rapid coverage of large areas. It is designed for use in a variety of dermatological, cosmetic and surgical applications. Multiple scanning options are available including square or circle, in a spiral, grid or circumferential pattern as well as straight or curved lines.

ThermoTight optimizes treatment efficacy by providing higher energy output per pixel in shorter pulses for ablative procedures. The galvanometric scanning motor delivers energy more quickly per scanning area than the CO2  focus applicators, for faster and more efficient coverage of large surface areas.

  • Water cooling system
  • External smoke expulsion unit
  • 15” touch screen
  • Smart SW presets
  • 3 Leading treatments:
      • Hybrid Lift – The holy trinity of the Hybrid world: Pixel CO₂ + 1570 + Impact.  Positioned as the super-skin-rejuvenation treatment.
      • Hybrid OScar – Mega combination for scars treatment: Pixel CO₂ + 1570 + Impact
      • SoftLift – Hybrid’s moderate treatment option, effective with no downtime
  • Safe – Precise and versatile combination of both wavelengths, no overlapping
  • High efficacy treatment (1 or 2 sessions) – Both wavelengths keep their original effect side by side
  •  Short downtime (“over the weekend”) – Due to low density of CO2 wavelength
  •  Convenient – Strong cooling numbing the skin

10,600nm – Indications

  • Acne scars
  • Wrinkles, rhytids, and furrows (including fines lines and texture irregularities).
  • Skin Laxity
  • Keloids including acne keloidalis nuchae
  • Superficial pigmented lesions
  • Cutaneous papilloma (skin tags)
  • Neurofibromas
  • Syringoma
  • Scar revision (e.g. burn and traumatic)
  • Surgical scars
  • Removal of small benign skin tumors
  • Uneven pigmentation/dyschromia
  • Stretch Marks (Striae)
  • Xanthelasma palpebrarum
  • Upper and lower eyelid blepharoplasty
  • Buccal hemangioma
  • Complete or partial nail matrixectomy
  • Milia·Rhinophyma reduction
  • Lichen Sclerosus
  • Keratoses, including actinic and seborrheic keratosis, seborrhoecae vulgaris, seborrheic wart and verruca seborrheica
  • Hemangiomas (including buccal, port wine and pyogenic granulomas/granuloma pyogenicum/granuloma telagiectaticum)
  • Nevi, including spider, epidermal and protruding
  • Cheilitis, including actinic cheilitis
  • Lentigines
  • Benign vascular/avascular skin lesions
  • Complete or partial nail matrixectomy
  • Vulvar Paget’s disease



1570nm – Indications

  • Acne scars
  • Skin rejuvenation
  • Melasma
  • Scar revision (including surgical and traumatic scars)
  • Including the treatment of periorbital and perioral wrinkles
  • Stretch marks (striae)



Technologies

  • CO2, 10,600nm, Tube Laser, 30/70 Watts
  • 1,570nm, Fiber Laser, 15 Watts
  • IMPACT Patented Ultrasound technology for Trans Epidermal Delivery

Applicators:

  • Cooled Scanner (CO2,1570nm, CO2 & 1570)
  • Full beam 1-4 mm (CO2 ,1570nm)
  • Defocused beam (CO2)
  • Pixel 9×9 / 7×7 (CO2)
  • Impact

Before After Images

Before After



Hybrid Lift – super renewal treatment, After 2 treatments

Courtesy of Dr. Ofir Artzi, Dermatologist and Laser Expert, Head of the Center of Aesthetic Dermatology, Sourasky Medical Center, Tel Aviv, Israel



Before After



Hybrid OScar – scar treatment, After 4 treatments

Courtesy of Dr. Ofir Artzi, Dermatologist and Laser Expert, Head of the Center of Aesthetic Dermatology, Sourasky Medical Center, Tel Aviv, Israel

Before After



SoftLift – ‘lunch-time’ rejuvenation treatment, after 3 treatments

Courtesy of Alma’s clinical department

Before After



Courtesy of Dr. Arellano – Mexico
